Product Description
The BYD Huweijian 07, mainly translated in English sources as the BYD Frigate 07 or BYD Corvette 07 is a mid-size crossover SUV manufactured by Chinese automaker BYD Auto. The second plug-in hybrid electric vehicle (PHEV) of BYD's new "Ocean Series" of plug-in electric vehicles, the Frigate 07 is equipped with the DM-i hybrid technology shared with the BYD Destroyer 05, and the additional DM-p performance oriented hybrid technology from the PHEVs of the BYD Dynasty series.
Charging the Frigate 07 can be done either through a normal household AC plug at 3.3 kW and the all wheel drive version supports a faster 6.6 kW AC charging. All versions of the Frigate 07 support DC fast charging at either 40 kW or 75 kW respectively. The Vehicle-to-Load is supported by all versions of the Frigate 07 and offers up to 6.6 kW.

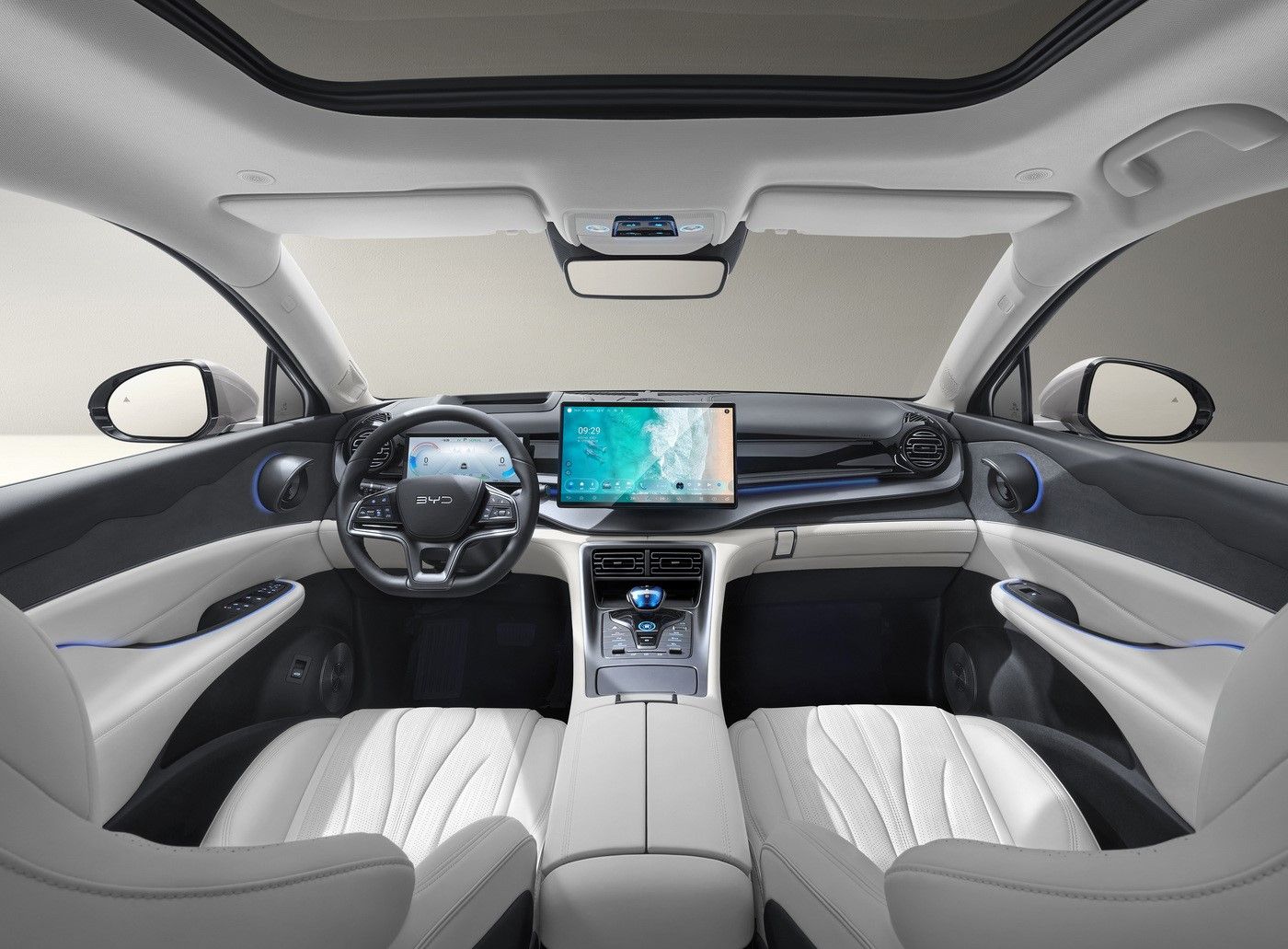

The interior of the Frigate 07 is equipped with a 15.6 inches (400 mm) rotating main screen, 360-degree HD cameras, and app-controlled autonomous parking. Just like the one on the Destroyer 05, The 15.6 inch main touch screen can rotate from landscape to portrait.

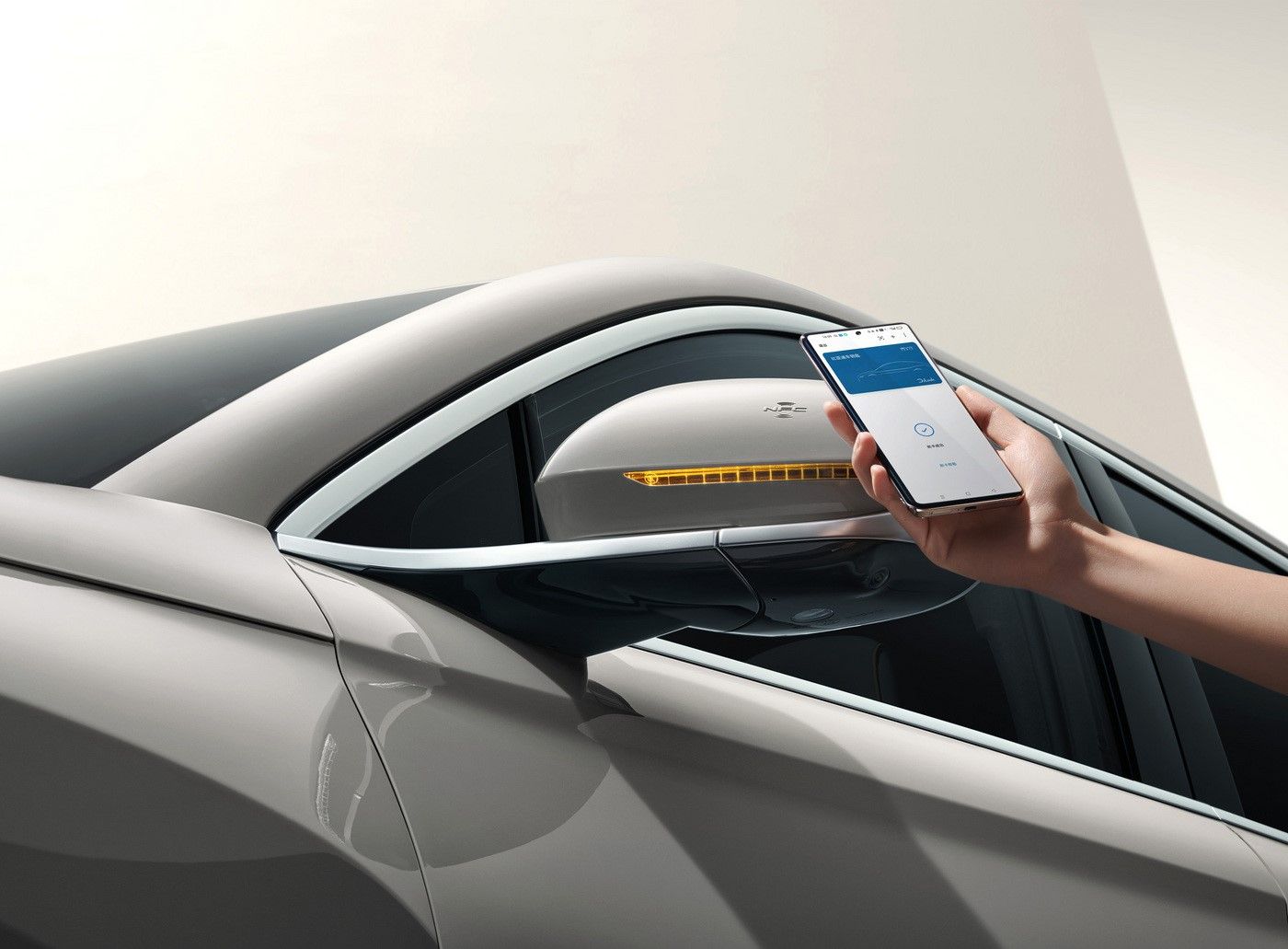

The Frigate 07 supports the i-Phone NFC digital key and also comes with the DiPilot intelligent driving assistance system that provides users with advanced driving-assisting functions including active braking, maintaining lanes, adaptive cruise control, and pedestrian recognition and protection. The Frigate 07 is also the first model from BYD to be equipped with the FSD frequency variable damping dampers and four-link independent rear suspensions.
The BYD Frigate 07 is powered by BYD's DM-i and DM-p hybrid EHS system (Electric Hybrid System) in two variants with two battery sizes respectively. Both DM-i and DM-p versions are fitted with a 102-kilowatt (137 hp; 139 PS) and 231-newton-metre (24 kg⋅m; 170 lb⋅ft) 1.5-litre turbo-charged Xiaoyun Miller cycle petrol engine producing 81 kW (109 hp; 110 PS) and a 60-litre (13 imp gal; 16 US gal) fuel tank giving the car a combined range of over 1,200 kilometres (746 mi) and a fuel economy of 5.5 litres per 100 kilometres (18.2 km/L; 51.4 mpg; 42.8 mpg). The all wheel drive dual motor DM-p version focuses on performance and has a 36.8-kilowatt-hour (132 MJ) Blade lithium iron phosphate battery capable of an electric-only range of 170 kilometres (106 mi) (WLTC), powering two electric motors resulting in a combined output of 295 kW (396 hp; 401 PS) with 656 N⋅m (67 kg⋅m; 484 lb⋅ft) of torque, while the front wheel drive DM-i version focuses on fuel economy and is equipped with a 18.3-kilowatt-hour (66 MJ) Blade lithium iron phosphate battery which is good enough for 82 kilometres (51 mi) (WLTC) of pure electric driving range powering a single electric motor with an output of 145 kW (194 hp; 197 PS) and 316 N⋅m (32 kg⋅m; 233 lb⋅ft) of torque. The all wheel drive DM-p version has a 0 to 100 km/h (0 to 62 mph) acceleration time of 4.7 seconds, while the front wheel drive DM-i model accelerates from 0 to 100 km/h (0 to 62 mph) in 8.5 seconds.

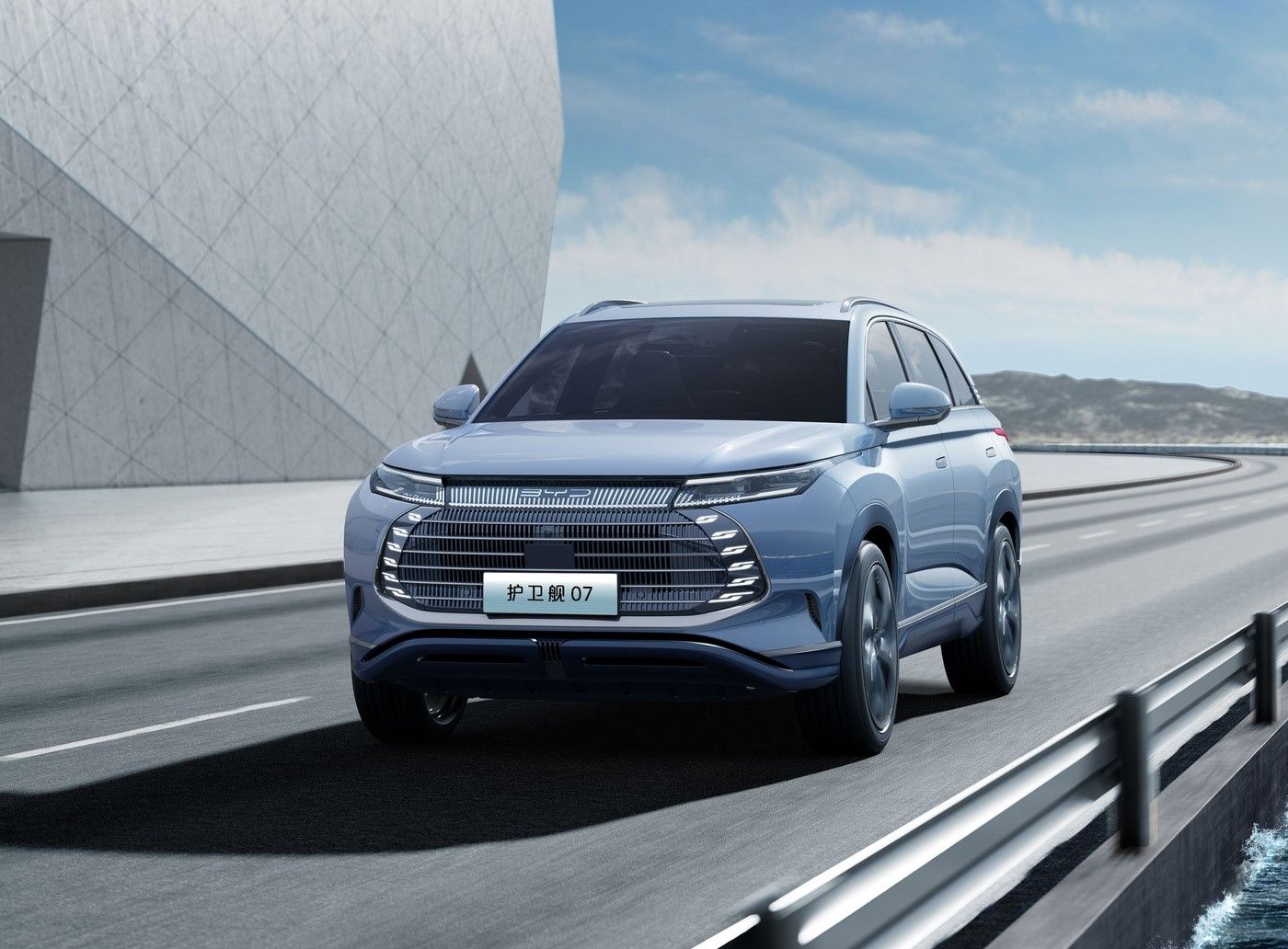

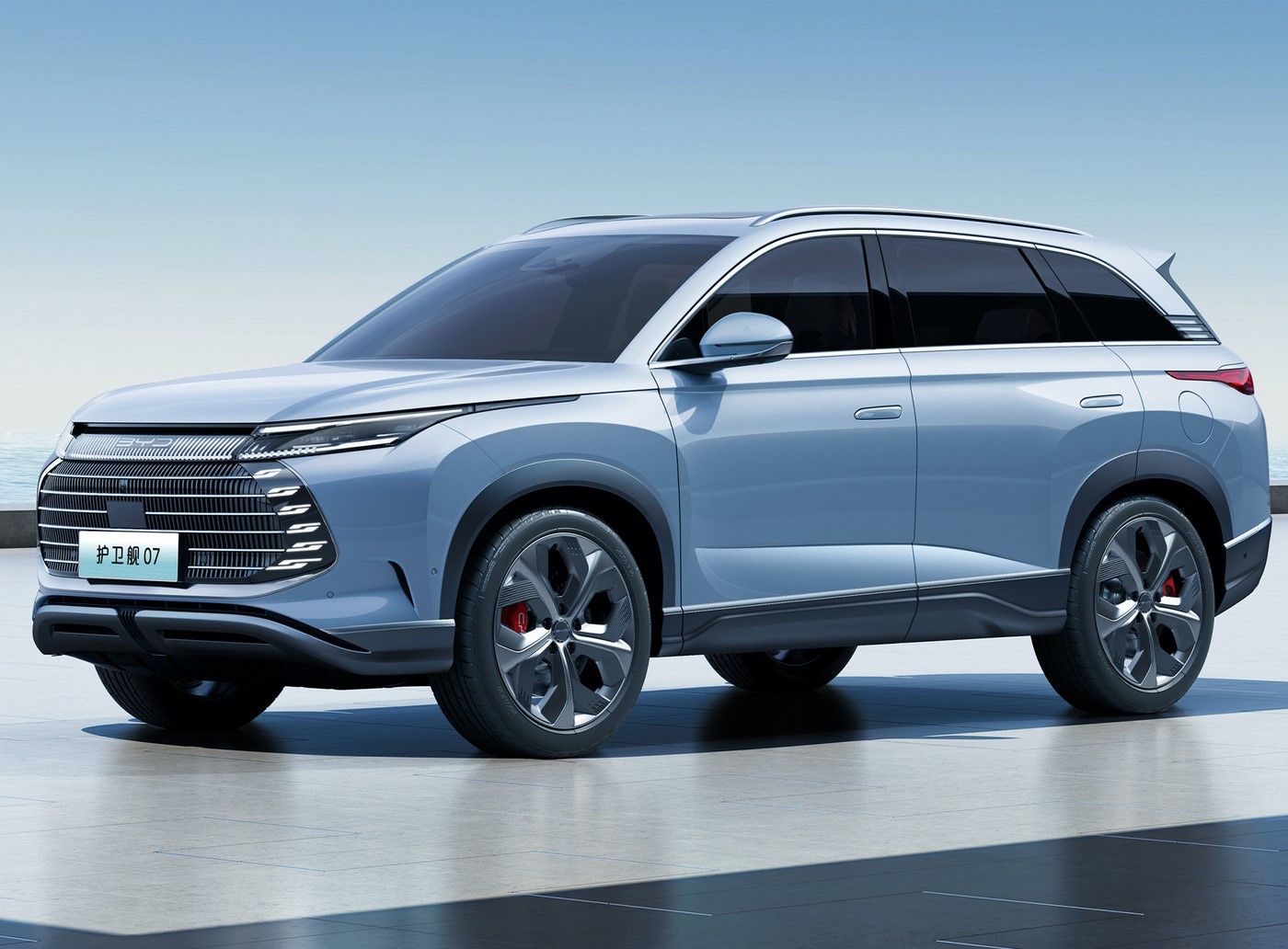

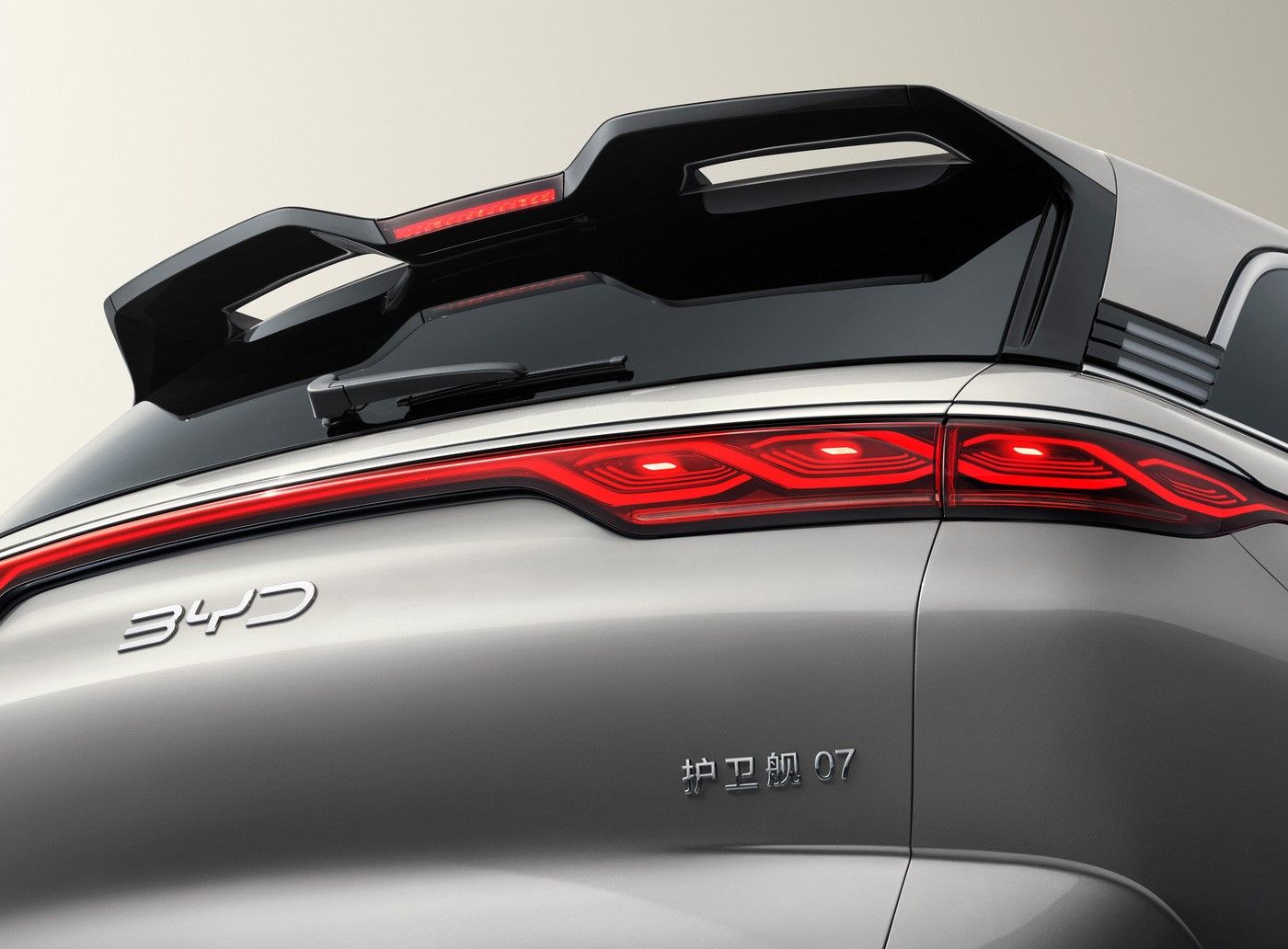

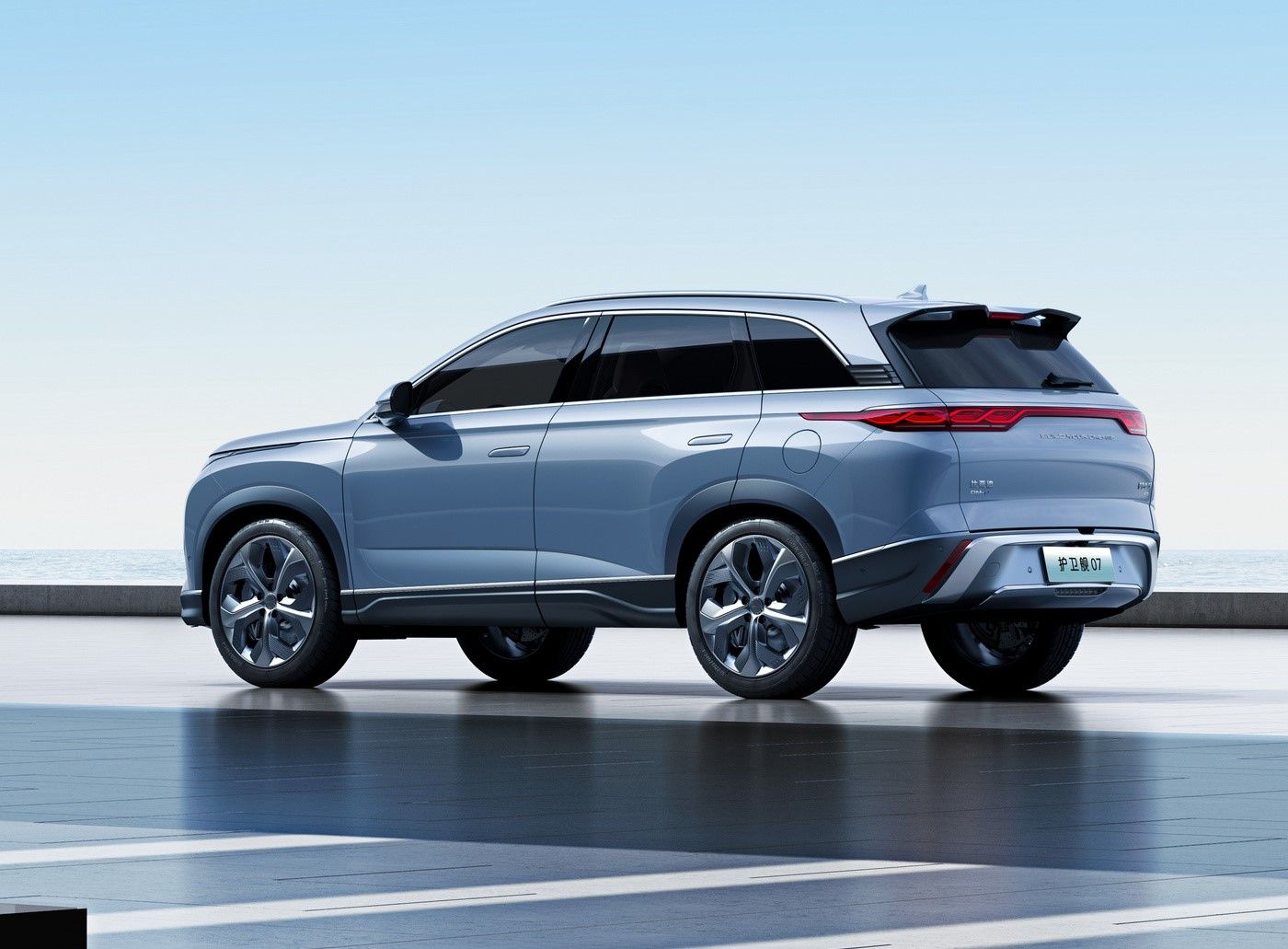

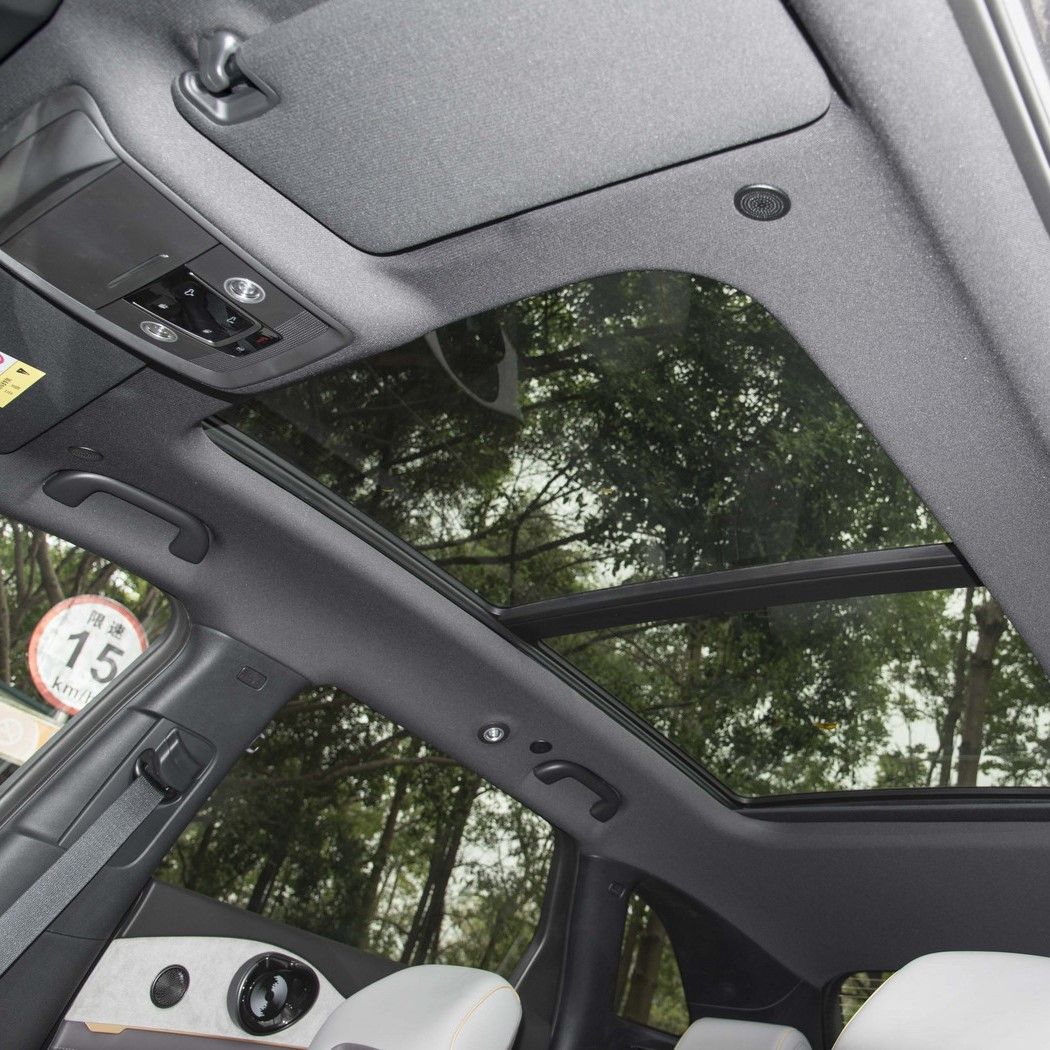

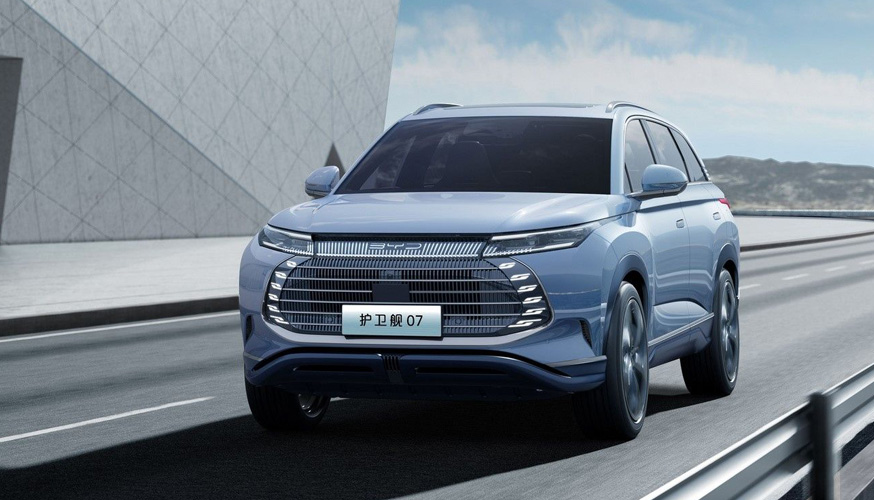

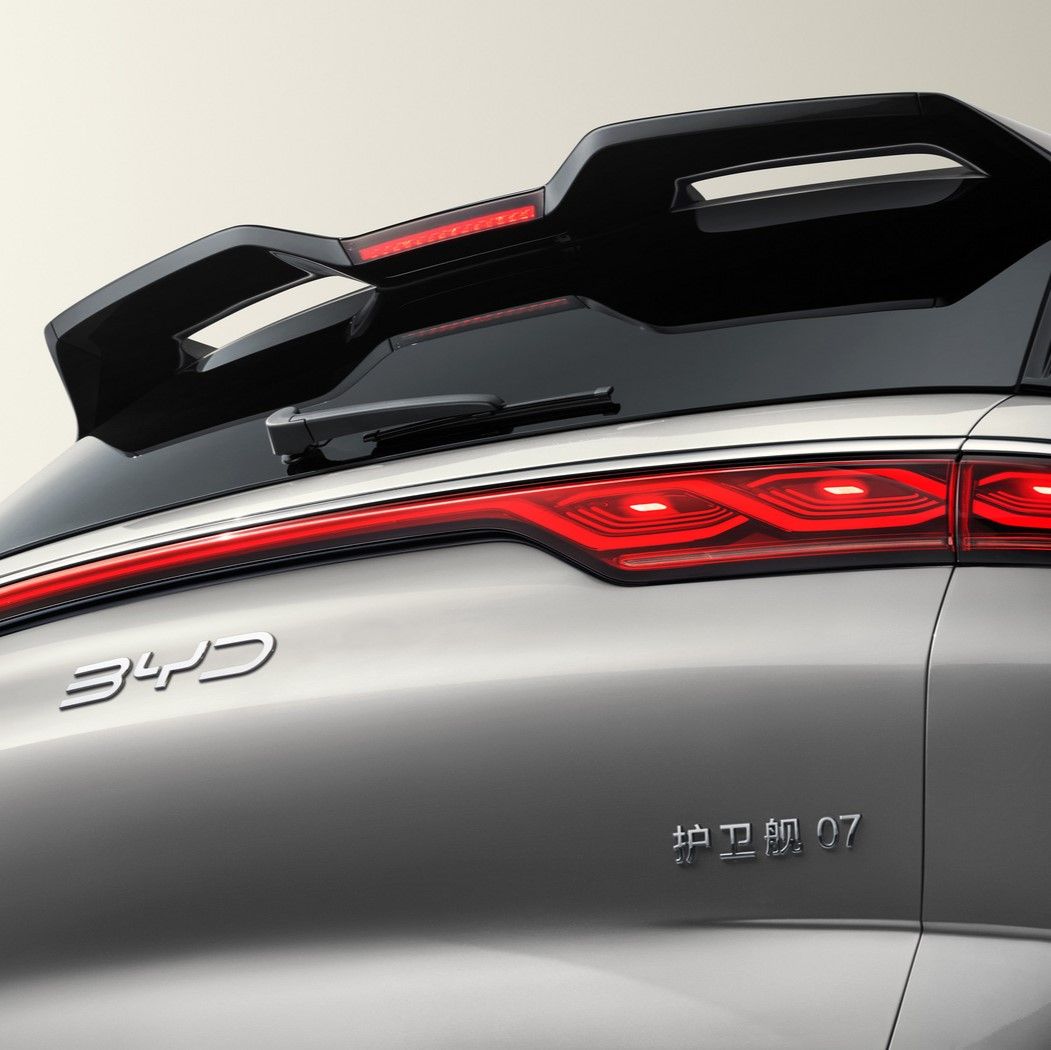

Detailed Photos
Product Parameters
| Frigate 07 Parameter configuration table | ||||||
| The 100KM luxury model | The 100KM Noble type | The 100KM flagship type | The 205KM noble type | The 205KM flagship model | The 175KM four-wheel-drive flagship model | |
| Dimensions parameters | ||||||
| Length, width and height (mm) | 4820×1920×1750 | 4820×1920×1750 | 4820×1920×1750 | 4820×1920×1750 | 4820×1920×1750 | 4820×1920×1750 |
| wheel base (mm) | 2820 | 2820 | 2820 | 2820 | 2820 | 2820 |
| Front / rear of rotation (mm) | 1640/1640 | 1640/1640 | 1640/1640 | 1640/1640 | 1640/1640 | 1640/1640 |
| Minimum turning radius (m) | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 |
| fuel tank capacity (L) | 60 | 60 | 60 | 60 | 60 | 60 |
| tyre size | 235/55R19 | 245/50R20 | 245/50R20 | 245/50R20 | 245/50R20 | 245/50R20 |
| power performance | ||||||
| engine type | Snapcloud-plug-in hybrid dedicated turbocharged 1.5Ti efficient engine | |||||
| Engine form | Variable section turbocharger / in-cylinder direct injection / intermediate intake VVT / all-aluminum alloy engine / Miller cycle / high compression ratio / ultra-low friction | |||||
| displacement (L) | 1.5Ti | 1.5Ti | 1.5Ti | 1.5Ti | 1.5Ti | 1.5Ti |
| Maximum engine power (kW) | 102 | 102 | 102 | 102 | 102 | 102 |
| Maximum engine torque (N · m) | 231 | 231 | 231 | 231 | 231 | 231 |
| Maximum power of the front motor (kW | 145 | 145 | 145 | 145 | 145 | 145 |
| Maximum torque of the front motor (N · m) | 316 | 316 | 316 | 316 | 316 | 316 |
| Maximum power of the rear motor (kW) | -- | -- | -- | -- | -- | 150 |
| Maximum torque of the rear motor (N · m) | -- | -- | -- | -- | -- | 340 |
| 0-100km / h acceleration time (s) | 8.5 | 8.5 | 8.5 | 8.9 | 8.9 | 4.7 |
| Variable speed system | EHS electric mixing system | EHS electric mixing system | EHS electric mixing system | EHS electric mixing system | EHS electric mixing system | EHS electric mixing system |
| Drive form | progenitor | progenitor | progenitor | progenitor | progenitor | Four-wheel drive |
| Power battery type | Blade battery | Blade battery | Blade battery | Blade battery | Blade battery | Blade battery |
| Battery capacity (kWh) | 18.3 | 18.3 | 18.3 | 36.8 | 36.8 | 36.8 |
| NEDC integrated working condition of pure electric driving range (km) | 100 | 100 | 100 | 205 | 205 | 175 |
| NEDC (L / 100km) | 5.3 | 5.3 | 5.3 | 5.4 | 5.4 | 6.4 |
| WLTC integrated working condition of pure electric driving range (km) | 82 | 82 | 82 | 170 | 170 | 150 |
| WLTC integrated fuel consumption (L / 100km) | 5.8 | 5.8 | 5.8 | 5.8 | 5.8 | 6.7 |
| Environmental standards | country VI | country VI | country VI | country VI | country VI | country VI |
| Brake and suspension | ||||||
| Front Brake Type | Ventilation disc type | Ventilation disc type | Ventilation disc type | Ventilation disc type | Ventilation disc type | Ventilation disc type |
| Rear brake type | disk | disk | disk | disk | disk | disk |
| Front suspension type | McPherson type independent suspension | McPherson type independent suspension | McPherson type independent suspension | McPherson type independent suspension | McPherson type independent suspension | McPherson type independent suspension |
| Rear suspension type | Four-link independent suspension | Four-link independent suspension | Four-link independent suspension | Four-link independent suspension | Four-link independent suspension | Four-link independent suspension |
| New energy configuration | ||||||
| Distributed power battery management | √ | √ | √ | √ | √ | √ |
| Battery intelligent temperature control and management system | √ | √ | √ | √ | √ | √ |
| Heat pump air conditioning | -- | -- | -- | √ | √ | √ |
| Allocate the charging function | √ | √ | √ | √ | √ | √ |
| Maximum 40KW DC fast charging port | √ | √ | √ | -- | -- | -- |
| Maximum 75KW DC fast charging port | -- | -- | -- | √ | √ | √ |
| Mobile power station function (max. 3.3kw) | √ | √ | √ | -- | -- | -- |
| Mobile power station function (maximum of 6kw) | -- | -- | -- | √ | √ | √ |
| VTQL 220V Power supply output connection is installed in five | √ | √ | √ | √ | √ | √ |
